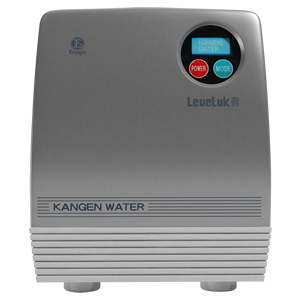

Model name / number LEVELUK R / TYH-71

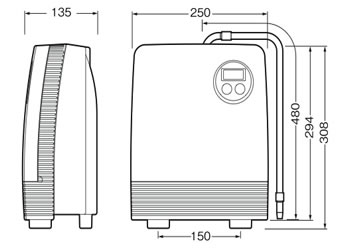

Dimensions (see scale drawing) (mm)
Gross Weight (wet) 6.2kg
Water source connection 1-way diverter (TAP/SHOWER/ION) connects to the end of faucet
Power Supply AC 220V, 50/60Hz, 2.7A
Power consumption Approx. 120W (under maximum electrolysis function)
System Continuous Ionized Electrolysis Water Generator System (with built-in flow rate sensor)
Production rate (liter(s)/minute)
- Kangen Water®: 1.5-5.5
Acidic water: 1.5-4.5
Level Selections
Kangen Water® / 3 levels (approx. pH 8.5-9.5)
Clean water (pH 7)
Acidic water (approx. pH 6.0)
Electrolysis Capability (continuous use) Approx. 30 min at normal room temperature Cell cleaning method
Auto cleaning system (periodically controlled by internal computer)
Applicable water quality and pressure Municipally supplied drinking water: dynamic range in 100-450kPa
Electrolysis Enhancer N/A
Enhancer Refilling N/A
Protector Platinum-plated Titanium Electrode material Platinum coated Titanium
Electrode plates 3
Filtering medium Granulated antibacterial activated carbon and calcium sulfite
Filtered Substances Sediment to 5 microns, Chlorine, taste and odour
Unremoved substances Metal ions and dissolved salts in the source water
Elements not removable Metallic ions and/or salinity present in original tap water
Time to exchange the filter When the filter has treated 1500 gallons of water (depends on quality of original tap water)
Optional/replacement parts
